Sturdy Vac is a manufacturer and distributor of Specalist Vacuum Cleaners and tools for Chiminey Sweep applications. Learn more about Sturdy Vac. Industrial and Specialist Chimney Vacuum Cleaners
  • svk10 type h vacuum cleaner

    Full vacuum cleaner servicing available at our Brighton service centre.

    Generous Discounts Available. Please note that prices and specifications listed on this site should only be taken as a guide.

  • mancuna valve

    Mancuna Valve – a low cost air tight seal for hoppers or dust collection operating under negative pressure.

    Automatic operation and requires no power.

  • aircraft ruc sac vacuum cleaner

    RSV130 Ruck Sac Aircraft Type Vacuum Cleaner.

    Ergonomically designed harness system providing operator comfort and mobility. .

Chimney Sweep Industrial & Commercial Vacuum Cleaner Range

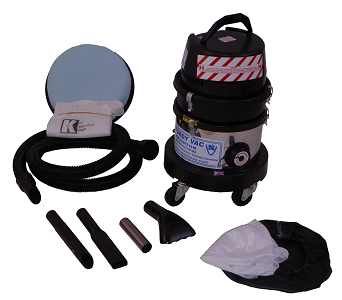

Model SVK15 Chimney Sweep Industrial Vacuum Cleaner

svk15 chimney vacuum cleanerThis Model is powered by a single 1,000 Watt By-Pass Motor with Single Illuminated Rocker Switch with protective cover.

All housed in Plastic Casing fitted with Ten Metre 3 Core Cable and Moulded Plug.

15 litre Stainless Steel Canister with 38mm Threaded connection and Blanking Cap & Strap

This machine has Three stages of Filtration comprising of the following:

Stage One: primary separation takes place in a Polypropylene Disposable Bag

Stage Two: is a 12” Black Spun Bond or White Satin finish Filter Protector (both supplied with machine)

Stage Three : 12” Polyester Needlefelt Filter Bag with Micro Porous Finish.

The canister supports the motor head which is secured by three toggle clips, All mounted on a Castor Base Chassis with four 75mm Swivelling Castors.

Supplied with 38mm Accessory Tool Kit and Ten Disposable Bags.

Suitable for use on 240 volt Single Phase 50Hz.

Machine Performance:

                                                                                Maximum Vacuum 2,500mm (98" W.G) Maximum Airflow 2.6 m³/min (43.5L/Sec)

                                                                                Options Include: HEPA Chamber Assembly , With or Without Castor Base Chassis

                                                                                Prices: £395.00 with 38mm Tool Kit and Ten Disposable Bags

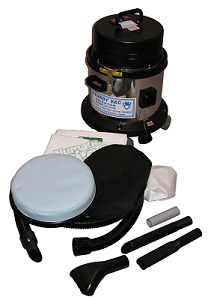

Model SVK20 Chimney Sweep Industrial Vacuum Cleaner

svk20 vacuum cleanerThis Mode is powered by Single or Twin 1,000 Watt By-Pass Motor with Single or Twin Illuminated Rocker Switch with protective cover.

All housed in Metal or Plastic Casing fitted with Ten Metre 3 Core Cable and Moulded Plug.

20 litre Stainless Steel Canister fitted with Two Carrying Handles, 38 or 51mm Threaded Connection and Blanking Cap & Strap to avoid spillages.

This machine has Three stages of Filtration comprising of the following:

Stage One: primary separation takes place in a Polypropylene Disposable Bag

Stage Two: is a 14” Black Spun Bond or White Satin finish Filter Protector (both supplied with machine)

Stage Three : 14” Polyester Needlefelt Filter Bag with Micro Porous Finish.

The canister supports the motor head which is secured by two toggle clips, All mounted on a Castor Base Chassis with four 75mmSwivelling Castors.

Supplied with 38mm Accessory Tool Kit and Ten Disposable Bags.

Suitable for use on 240 volt Single Phase 50Hz.

Machine Performance:

                                                  Single Motor:

                                                  Maximum Vacuum 2,500mm (98" W.G) Maximum Airflow 2.6 m³/min (43.5L/Sec).

                                                 Twin Motor:

                                                  Maximum Vacuum 2,500mm (98" W.G) Maximum Air Flow: 4.92 m³/ min (82 L/Sec)

                                                 Options Include: HEPA Chamber Assembly , with or without Castor Base Chassis

                                                 Also available with Caddy Trolley.

                                                 Prices:

                                                 Single Motor £340.00 with 38mm or 51mm Tool Kit and Ten Disposable Bags

                                                 Twin Motor £430.00 with 38mm or 51mm Tool Kit and Ten Disposable Bags

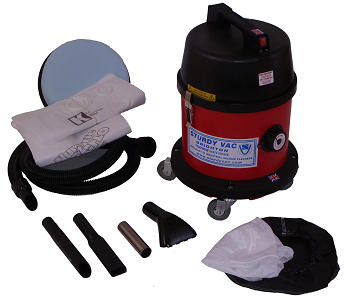

Model SVK25 Chimney Sweep Industrial Vacuum Cleaner

svk25 chimney vacuum cleanerThis Mode is powered by Single or Twin 1,000 Watt By-Pass Motor with Single or Twin Illuminated Rocker Switch with protective cover

All housed in Plastic Casing fitted with Ten Metre 3 Core Cable and Moulded Plug.

25 litre Moulded Plastic Canister fitted with Two Carrying Handles, 38 or 51mm Threaded Connection and Blanking Cap & Strap to avoid spillages,

This machine has Three stages of Filtration comprising of the following:

 Stage One: primary separation takes place in a Polypropylene Disposable Bag

Stage Two: is a 14” Black Spun Bond or White Satin finish Filter Protector (both supplied with machine)

Stage Three : 14” Polyester Needlefelt Filter Bag with Micro Porous Finish.

The canister supports the motor head which is secured by two toggle clips, All mounted on a Castor Base Chassis with four 75mmSwivelling Castors.

Supplied with 38mm Accessory Tool Kit and Ten Disposable Bags.

Suitable for use on 240 volt Single Phase 50Hz.

Machine Performance:

                                                                                 Single Motor:

                                                                                 Maximum Vacuum 2,500mm (98" W.G) Maximum Airflow 2.6 m³/min (43.5L/Sec)

                                                                                 Twin Motor:

                                                                                 Maximum Vacuum 2,500mm (98" W.G) Maximum Air Flow: 4.92 m³/ min (82 L/Sec)

                                                                                 Options Include: HEPA Chamber Assembly.

                                                                                 Prices:

                                                                                 Single Motor £395.00 with 38mm or 51mm Tool Kit and Ten Disposable Bags

                                                                                 Twin Motor £470.00 with 38mm or 51mm Tool Kit and Ten Disposable Bags

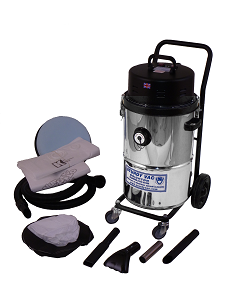

Model SVK45 Chimney Sweep Industrial Vacuum Cleaner

svk45 chimney vacuum cleanerThis Mode is powered by Single or Twin 1,000 Watt By-Pass Motor with Single or Twin Illuminated Rocker Switch with protective cover.

All housed in Metal or Plastic Casing fitted with Ten Metre 3 Core Cable and Moulded Plug.

45 litre Stainless Steel Canister fitted with Two Carrying Handles, 38 or 51mm Threaded Connection and Blanking Cap & Strap to avoid spillages,

This machine has Three stages of Filtration comprising of the following:

Stage One: primary separation takes place in a Polypropylene Disposable Bag alternatively Open type Protector Bag

Stage Two: is a 14” Black Spun Bond or White Satin finish Filter Protector (both supplied with machine)

 Stage Three : 14” Polyester Needlefelt Filter Bag with Micro Porous Finish.

The canister supports the motor head which is secured by two toggle clips, All mounted on a Caddy Type Trolley (One Toggle Clip to unclip trolley) fitted with Twin 205mm Rubber Tyred Wheels and Two 75mm Front Swivelling Castors, The pushing handle forms part of the trolley.

Supplied with 38mm or 51mm Accessory Tool Kit and Ten Disposable Bags. Alternatively Ten Open Type Bags

                                                      Suitable for use on 240 volt Single Phase 50Hz.

                                                      Machine Performance:

                                                      Single Motor Maximum Vacuum 2,500mm (98" W.G) Maximum Airflow 2.6 m³/min (43.5L/Sec)

                                                      Twin Motor Maximum Vacuum 2,500mm (98" W.G) Maximum Air Flow: 4.92 m³/ min (82 L/Sec)

                                                      Options Include: HEPA Chamber Assembly, With or Without Trolley, Accessory Tool Basket

                                                  Prices:

                                                  Single Motor £525.00 with 38 or 51mm Tool Kit and Ten Disposable Bags or Ten Open Protector Bags

                                                  Twin Motor £580.00 with 38 or 51mm Tool Kit and Ten Disposable Bags or Ten Open Protector Bags

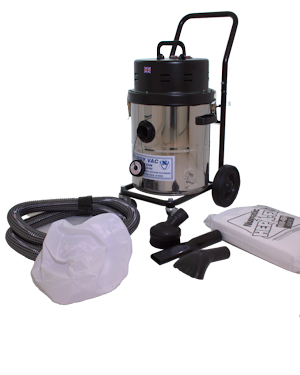

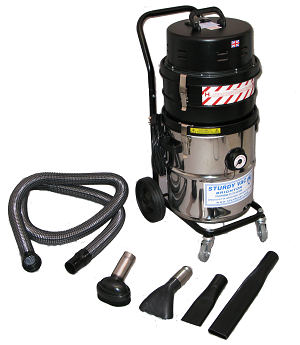

Model SVK30 Chimney Sweep Industrial Vacuum Cleaner

 chimney_vacuumModel SVK30 with disposable paper bag & Hepa Chamber assembly
 svk_chimney_vacuum_and_accessoriesModel SVK30 fitted with disposable Paper Bag & 51 mm hose and accessories

Options:



One or Two Motors - 20, 30, 45 Litre Capacity, Stainless Steel Canister, With or Without Trolley, With or Without Hepa Cartridge Filter

Various types of Filtration Media and Filter Protectors 38mm or 51mm Suction Hose and Accessories.

 We were approached by Mr David Moore Chimney Sweep Essex who was recommended to contact us by another sweep, and we came up with the following Vacuum Cleaner to meet his requirement:



Two 1,000 watt By-Pass Motors with individual On/Off Switches with Protective Switch Covers, Six Metres 3 core Cable fitted with moulded plug, fitted to the Canister Cable Hook (we can also fit two cable cleats if required).

Canister Carrying Handles can be fitted to suit individual requirements, but David felt they were was just about in the right position,

Screwed Hose Connection on the Canister with Blanking Cap and Strap (so no soot can leak).

Mild Steel or Stainless Steel Trolley available if required alternatively a castor base trolley.



But as you all know filtration is the biggest concern, some like the soot to go directly into the canister and others into a disposable paper bag whatever you want you still need Good Filtration and we offer Polyester Needlefelt with Micro Porous Finish which provides good release properties but also available with Nylon finish, Anti-Static Material, Grey Polypropylene Resin High Efficiency.



We also offer a range of Filter Protectors and this can be Paper Type, material type such as Satin Nylon Finish or Black SpunBond Material finish whichever you use they still need to be kept clean.

The HEPA Cartridge Filter fitted to this machine having glass fibre paper element 99.997% efficient on particles to 0.6 microns to BS 3928 secured to the negative pressure.



This Filter has a very large surface area and will therefore give improved performance and a greatly increased filter life 38mm or 51mm wire reinforced suction hose and accessories to suit most requirements.

Prices and product specifications:

SVK30 with HEPA (240 Volt): £625.00

SVK30 without HEPA (240 Volt): £500.00



Please note that prices and specifications listed on this site should only be taken as a guide.  All prices quoted are Ex-Works and Exclusive of VAT.



spunbound filterElasticated Black SpunBond  Filer Protector
spunbound and nylon filterBlack SpunBond Filter Filter Protector with Nylon  Filter Assembly
needlefelt filterPolyester Needlefelt Filter with Satin Filter Protector
needlefelt and disposable Polyester Needlefelt Filter with Disposable Paper Bag
needlefelt_with_paper_filterPolyester Needlefelt Filter with Paper Filter Protector
long_crevice_nozzle470mm Long x 51mm Angled Plastic Crevice Nozzle
short_crevice_nozzle305mm x 51mm "V Ended" Crevice Nozzle

Please note that prices and specifications listed on this site should only be taken as a guide. All prices quoted are ex-works and exclusive of VAT.
